5-06 Series Backward Blade High-Efficiency Centrifugal Fan Blower

Name: 5-06 Series Backward Blade High-Efficiency Centrifugal Fan Blower
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: 5-10
Availability: InStock

Detalles del producto:

Lugar de origen:	CHANA
Nombre de la marca:	SIMO BLOWER
Certificación:	CE、ISO
Número de modelo:	5-10

Información detallada

Lugar de origen:

CHANA

Nombre de la marca:

SIMO BLOWER

Certificación:

CE、ISO

Número de modelo:

5-10

Nivel de protección:

IP55

Prueba de impulsor:

Ajuste de blanqueo dinámico

Clase de aislamiento:

Motor:

Motor de CA

Soporte personalizado:

ODM OEMOBM

Servicio posventa proporcionado:

Servicio de mantenimiento y reparación de campo

Resaltar:

High Light

Resaltar:

backward blade centrifugal fan

high-efficiency industrial blower

5-06 series centrifugal fan

Trading Information

Cantidad de orden mínima:

≥1 juego

Precio:

$500-1,00000.00/set

Detalles de empaquetado:

1. Caja de madera de exportación estándar 2. Paquete de tela impermeable para paletas de acero 3. Ot

Tiempo de entrega:

35 días (a negociar)

Condiciones de pago:

LC, D/P, T/T

Capacidad de la fuente:

300 juegos 30 días

Descripción de producto

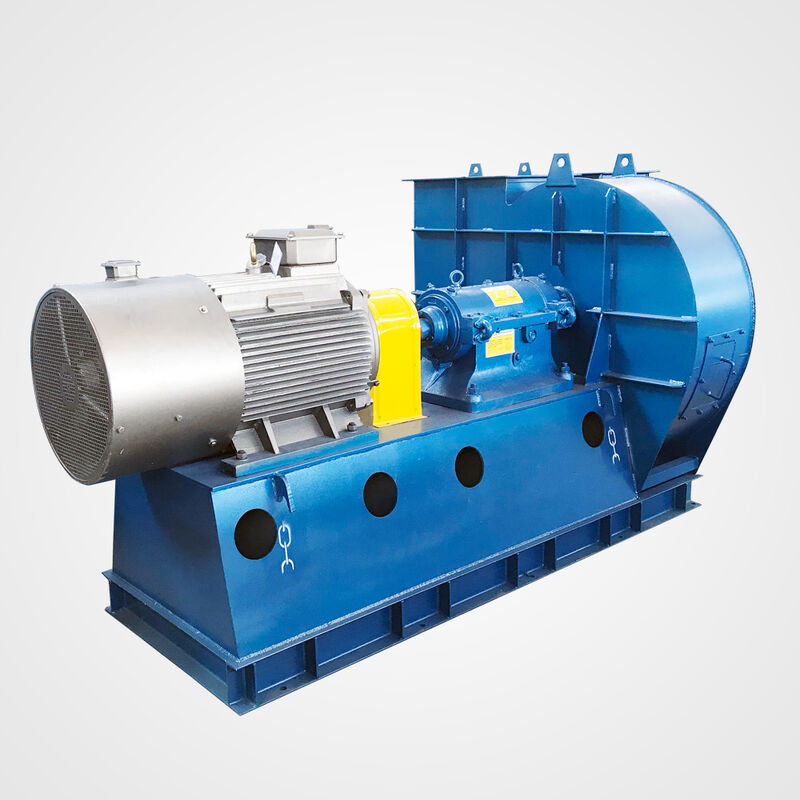

5-06 Series Backward Blade High-Efficiency Centrifugal Fan Blower

Detail Introduction

The 5-06 Series represents our advanced line of backward-blade centrifugal fan blowers, engineered to deliver exceptional efficiency and reliable performance in demanding industrial applications. Designed with a backward-curved aerodynamic impeller, this series achieves superior energy utilization while maintaining stable operation across varying system pressures.

Specification

Series no.	5-06series	Feature selection
Performance	Impeller diameter	400-2500mm
	Rotation speed	≤3000rpm
	Pressure range	1567-5764Pa
	Flow range	2470-377586m³/h
Structure	Blade type	Backward, Straight, Aerofoil type
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified)
	Cooling method	Air cooling, Water cooling, Oil cooling (Can be specified)
Driven mode	Direct driven, Coupling driven, Belt driven (Can be specified)
Gas composition	Gas temperature	Normal \| Customer request \| Customer request \| ≥250℃ \| Customer request
Gas composition	gascharacteristic	Clean gas \| Corrosive gas \| Particulate dust \| High temperature gas \| Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc (Can be specified)
	Impeller	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| Wear-resistant layer or wear-resistant liner, ceramic patch \| High temperature high quality alloy steel \| FRP, Aluminum alloy (Can be specified)
	Air inlet cone	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Casing	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Air damper	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Main shaft	High strength carbon steel, Alloy structural steel (Can be specified)
	Bearing	ZWZ, SKF, FAG, NSK (Can be specified)
Bearing housing	Cast iron
Foundation bolts	GB799-1988
Option parts	System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.

Product Features

It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.

The adjustment door can be used to flexibly adjust the pressure and flow of the fan during operation. It can also be equipped with a variable frequency motor to adjust the pressure and flow of the fan by changing the speed.

The bearing cooling method selects a low-cost water-cooling method or an oil-cooling method with better heat dissipation depending on the gas temperature and the conditions of the use environment. For extremely high temperature operating conditions, an electronic cooler can also be added to absolutely protect the reliable operation of the fan system.

For the materials of impeller and main shaft, for different working conditions and working speed, we will choose high-strength carbon steel, low-alloy steel, high-temperature alloy steel, high temperature resistant high-strength alloy steel, make the impeller and main shaft to maintain reliable strength at high temperatures.

For dust-containing gas, we can meet various working conditions from a small amount of dust to a very large dust content. After special treatment, the surface hardness of the blade can reach HRC60~70, which can extend the life of the impeller by more than 3 times.

The bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device.

The weld and the main shaft of the impeller are ultrasonic flaw detection to ensure that there are no welding defects and material defects to ensure strength.

After the production is completed, all products are tested for running and vibration values for reliable operation.

There are a variety of accessories to choose from.
